產品介紹

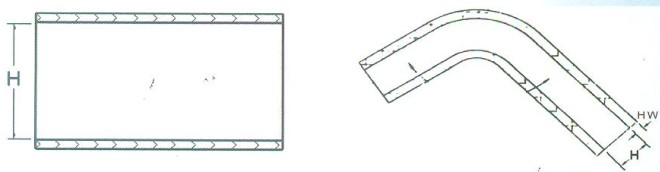

Type l/L
Dimensions (I)
|
收縮前 (mm)
|
After recovered (mm)
|
|
H min
|
min
|
H max
|
HW
|
J MAX
|
JW
|
P
|
|
19
|
6
|
13.8
|
2.4±0.1
|
3.9
|
1.5±0.1
|
52.5
|
|
18
|
18
|
5
|
2.0±0.1
|
3.8
|
1.5±0.1
|
36
|
|
24
|
24
|
10.4
|
2.0±0.1
|
5.6
|
2.0±0.1
|
38
|
|
30
|
30
|
14.2
|
2.0±0.1
|
5.9
|
2.0±0.1
|
67
|
|
31
|
31
|
18
|
2.0±0.1
|
7.1
|
2.0±0.1
|
75
|
|
36
|
36
|
22
|
2.2±0.1
|
8.4
|
2.2±0.1
|
90
|
|
43
|
43
|
26
|
2.5±0.1
|
9.9
|
2.5±0.1
|
105
|
|
60
|
60
|
34
|
3.0±0.1
|
15.7
|
3.0±0.1
|
115
|
|
66
|
66
|
41
|
4.5±0.1
|
16.8
|
2.0±0.1
|
175
|
Dimensions (L)
|
收縮前 (mm)
|
收縮后 (mm)
|
|
H min
|
J min
|
H max
|
HW
|
J MAX
|
JW
|
P
|
|
24
|
24
|
10
|
2.0±0.1
|
5
|
1.9±0.1
|
28
|
|
30
|
30
|
13.5
|
2.0±0.1
|
6.5
|
1.75±0.1
|
42
|
|
32
|
32
|
17
|
3.0±0.1
|
6.9
|
2.0±0.1
|
40
|
|
36
|
36
|
20
|
3.5±0.1
|
8
|
2.0±0.1
|
60
|
|
43
|
43
|
26
|
4.25±0.1
|
12
|
3.0±0.1
|
60
|
|
53
|
53
|
34
|
4.65±0.1
|
14.5
|
3.5±0.1
|
80
|
|
67
|
67
|
42.4
|
5.8±0.1
|
19
|
3.8±0.1
|
98
|

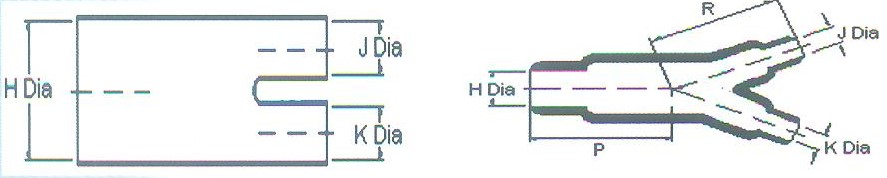

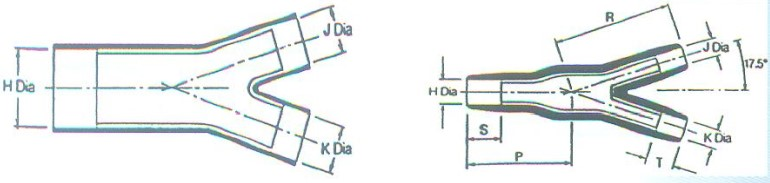

Type A/B
Dimensions (A)
|
收縮前 (mm)
|
收縮后 (mm)
|
|
(H&J) min
|
K min
|
(H & J) max
|
(H & J) W
|
K max
|
KW
|
P
|
|
13
|
7
|
5
|
2.0±0.1
|
3
|
1.0±0.1
|
57
|
|
27
|
7
|
10
|
2.5±0.1
|
3
|
1.0±0.1
|
105
|
|
27
|
13
|
13.4
|
2.8±0.1
|
7
|
2.25±0.1
|
140
|
|
56
|
13
|
26.9
|
2.8±0.1
|
6.9
|
2.25±0.1
|
185
|
Dimensions (B)
|
收縮前 (mm)
|
收縮后 (mm)
|
|
H min
|
(J & K) min
|
H max
|
HW
|
(J & K) max
|
(J & K) W
|
P
|
|
13
|
6
|
6.3
|
1.65±0.1
|
3
|
1.25±0.1
|
42
|
|
26
|
12.4
|
12
|
2.5±0.1
|
5.8
|
2.0±0.1
|
86
|

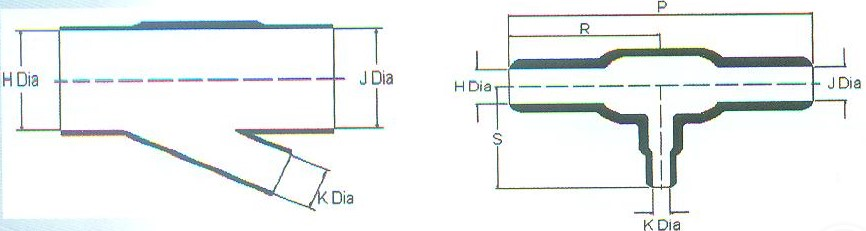

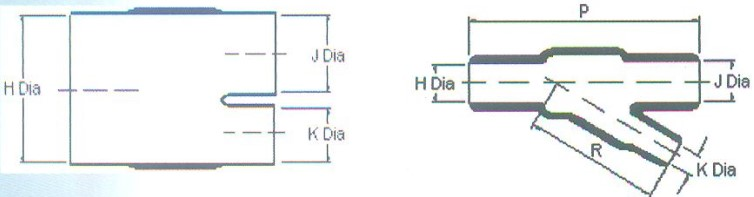

TYPE Y-C/ TYPE Y-D
Dimensions (C)
|
收縮前 (mm)
|
收縮后 (mm)
|
|
H min
|
J min
|
H max
|
HW
|
 max
|
JW
|
P
|
|
30
|
20
|
15.2
|
2.3±0.1
|
10.2
|
2.1±0.1
|
82
|
Dimensions (D)
|
收縮前 (mm)
|
收縮后 (mm)
|
|
H min
|
(J & K) min
|
H max
|
HW
|
(J & K) max
|
(J & K) W
|
P
|
|
13
|
7
|
5.5
|
2.0±0.1
|
3
|
1.0±0.1
|
22
|
|
27
|
13
|
12
|
2.5±0.1
|
5.6
|
1.7±0.1
|
40
|
|
39
|
27
|
18
|
3.0±0.1
|
12.4
|
2.4±0.1
|
85
|
|
56
|
27
|
27
|
4.8±0.1
|
12.7
|
2.5±0.1
|
94
|

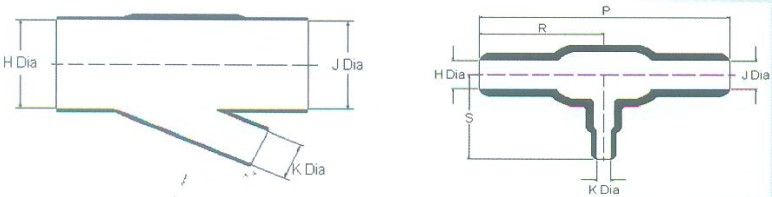

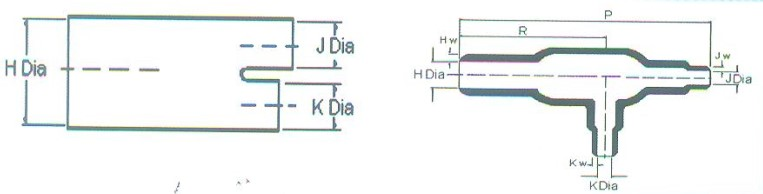

TYPE E / TYPE T-A
Dimensions (E)
|
收縮前 (mm)
|
收縮后 (mm)
|
|
H min
|
(J & K) min
|
H max
|
HW
|
(J & K) max
|
(J & K) W
|
P
|
|
15
|
9
|
7.6
|
2.2±0.1
|
5
|
2.0±0.1
|
28
|
|
21
|
13
|
10.3
|
2.2±0.1
|
6.2
|
2.0±0.1
|
38
|
Dimensions (T-A)
|
收縮前 (mm)
|
收縮后 (mm)
|
|
(H&J) min
|
K min
|
(H & J) max
|
(H & J) W
|
K max
|
KW
|
P
|
|
20
|
10
|
10.8
|
2.5±0.1
|
5
|
2.0±0.1
|
90
|

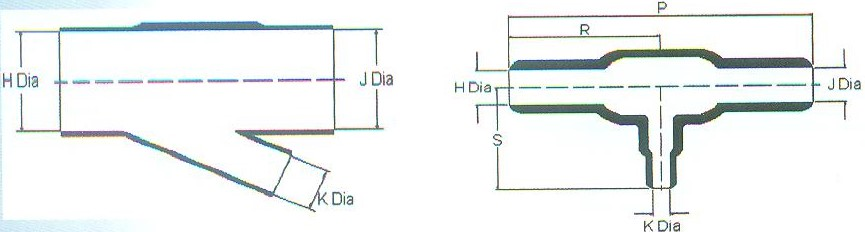

TYPE T-D/TYPE T-E
Dimensions (T-D)
|
收縮前 (mm)
|
收縮后 (mm)
|
|
(H & J & K) min
|
(H & J & K)max
|
(H & J & K) W
|
P
|
|
7
|
3.6
|
1.5±0.1
|
30
|
|
13
|
6.9
|
1.5±0.1
|
59
|
|
27
|
13.5
|
1.5±0.1
|
120
|
Dimensions (T-E)
|
收縮前 (mm)
|
收縮后 (mm)
|
|
H min
|
(J & K) min
|
H max
|
HW
|
(J & K) max
|
(J & K)W
|
P
|
|
13
|
7
|
7.4
|
2.5±0.1
|
3.8
|
1.5±0.1
|
56
|
|
27
|
8.2
|
13.2
|
2.5±0.1
|
6.7
|
1.5±0.1
|
97
|
|
36
|
27
|
27.2
|
2.5±0.1
|
13.2
|
1.5±0.1
|
198
|

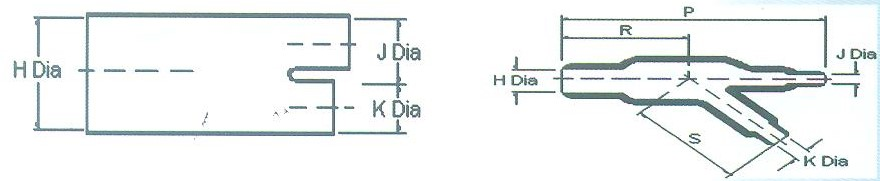

TYPE T-F/TYPE-IV
Dimensions (T-F)
|
收縮前 (mm)
|
收縮后 (mm)
|
|
(H & J) min
|
K min
|
(H & J) max
|
(H & J) W
|
K max
|
K W
|
P
|
|
13
|
7
|
5.8
|
2.0±0.1
|
3
|
1.0±0.1
|
52
|
|
27
|
13
|
12.7
|
2.0±0.1
|
5.8
|
1.0±0.1
|
108
|
|
56
|
13
|
25.4
|
2.5±0.1
|
5.8
|
1.5±0.1
|
181
|
|
56
|
27
|
25.4
|
2.5±0.1
|
12.4
|
1.5±0.1
|
222
|
Dimensions (IV)
|
收縮前 (mm)
|
收縮后 (mm)
|
|
(H & J) min
|
K min
|
(H & J) max
|
(H & J) W
|
K max
|
KW
|
P
|
|
13
|
7
|
6
|
1.5±0.1
|
3.5
|
1.0±0.1
|
46
|
|
27
|
13
|
12
|
2.5±0.1
|
6
|
1.5±0.1
|
100
|
|
39
|
19
|
17
|
3.0±0.1
|
9
|
2.0±0.1
|
145
|

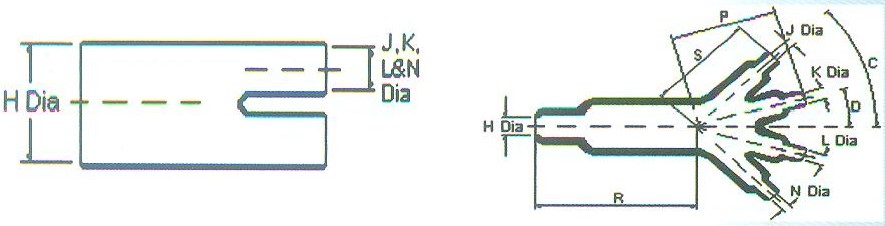

TYPE V / TYPE R?1
Dimensions (V)
|
收縮前 (mm)
|
收縮后 (mm)
|
|
H min
|
(J & K & L & N)
min
|
H max
|
H W
|
(J & K & L & N)
max
|
(J & K & L & N)
W
|
P
|
|
13
|
7
|
6
|
2.0±0.1
|
3
|
1.5±0.1
|
38
|
|
19
|
9
|
7
|
2.0±0.1
|
3.5
|
1.0±0.1
|
36
|
|
19
|
13
|
9
|
2.0±0.1
|
4
|
1.5±0.1
|
36
|
|
27
|
13
|
13
|
1.5±0.1
|
5
|
1.5±0.1
|
52
|
|
39
|
19
|
15
|
3.0±0.1
|
8
|
2.0±0.1
|
75
|

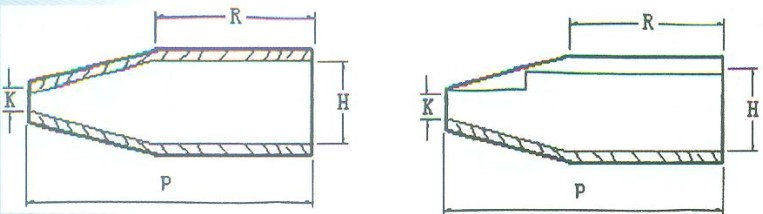

Dimensions (R-l)
|
收縮前 (mm)
|
收縮后 (mm)
|
|
H min
|
H max
|
H W
|
P
|
|
13
|
7
|
2.0±0.1
|
35
|

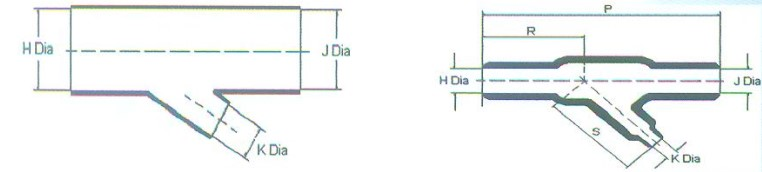

TYPE l-A/TYPE T-T
Dimensions (I-A)
|
收縮前 (mm)
|
收縮后 (mm)
|
|
H min
|
J min
|
H max
|
H W
|
max
|
J W
|
P
|
|
60
|
32
|
30
|
4.0±0.2
|
16
|
1.0±0.2
|
65
|
|
60
|
32
|
30
|
4.0±0.2
|
16
|
1.0±0.2
|
65
|
Dimensions (T-T)
|
收縮前 (mm)
|
收縮后 (mm)
|
|
H min
|
J min
|
K min
|
(H & J) max
|
(H & J) W
|
K max
|
J W
|
P
|
|
24
|
13
|
11
|
6
|
1.5±0.2
|
3
|
1.75±0.2
|
10
|
